The Heatmann Line Fan Clima (LFC) is an advanced trench fan coil system designed for modern residential, commercial, and office buildings where space, performance, and energy efficiency must work together seamlessly.

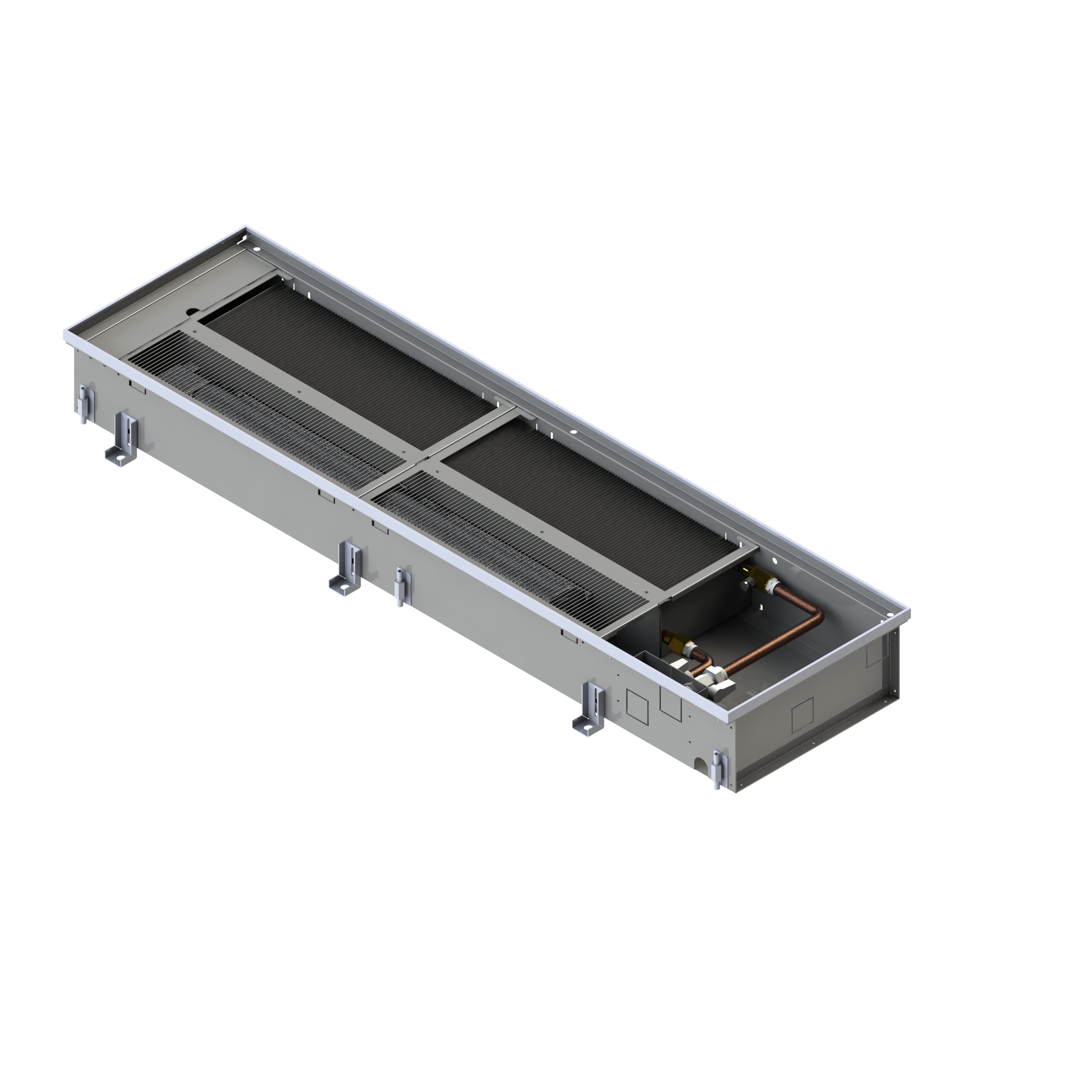

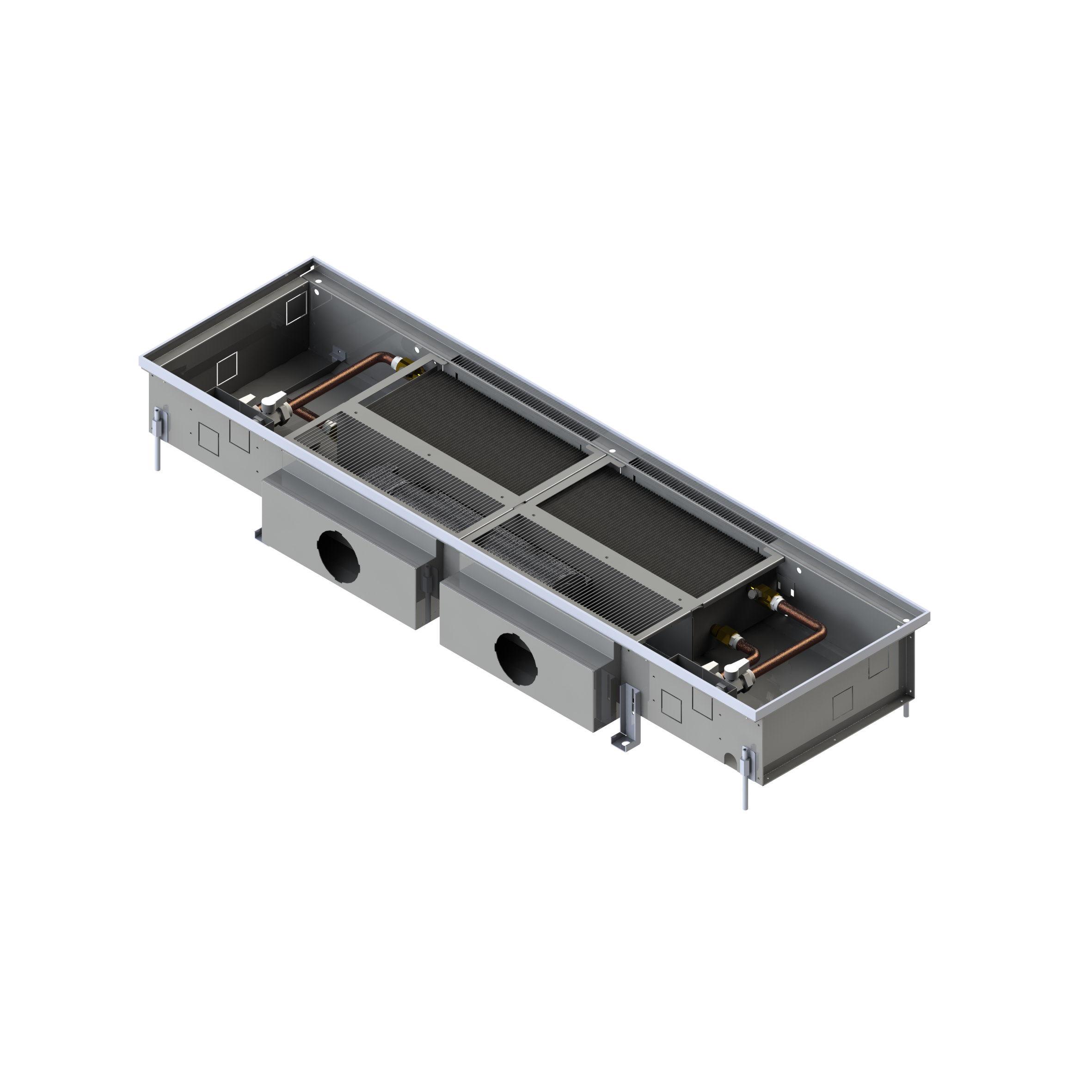

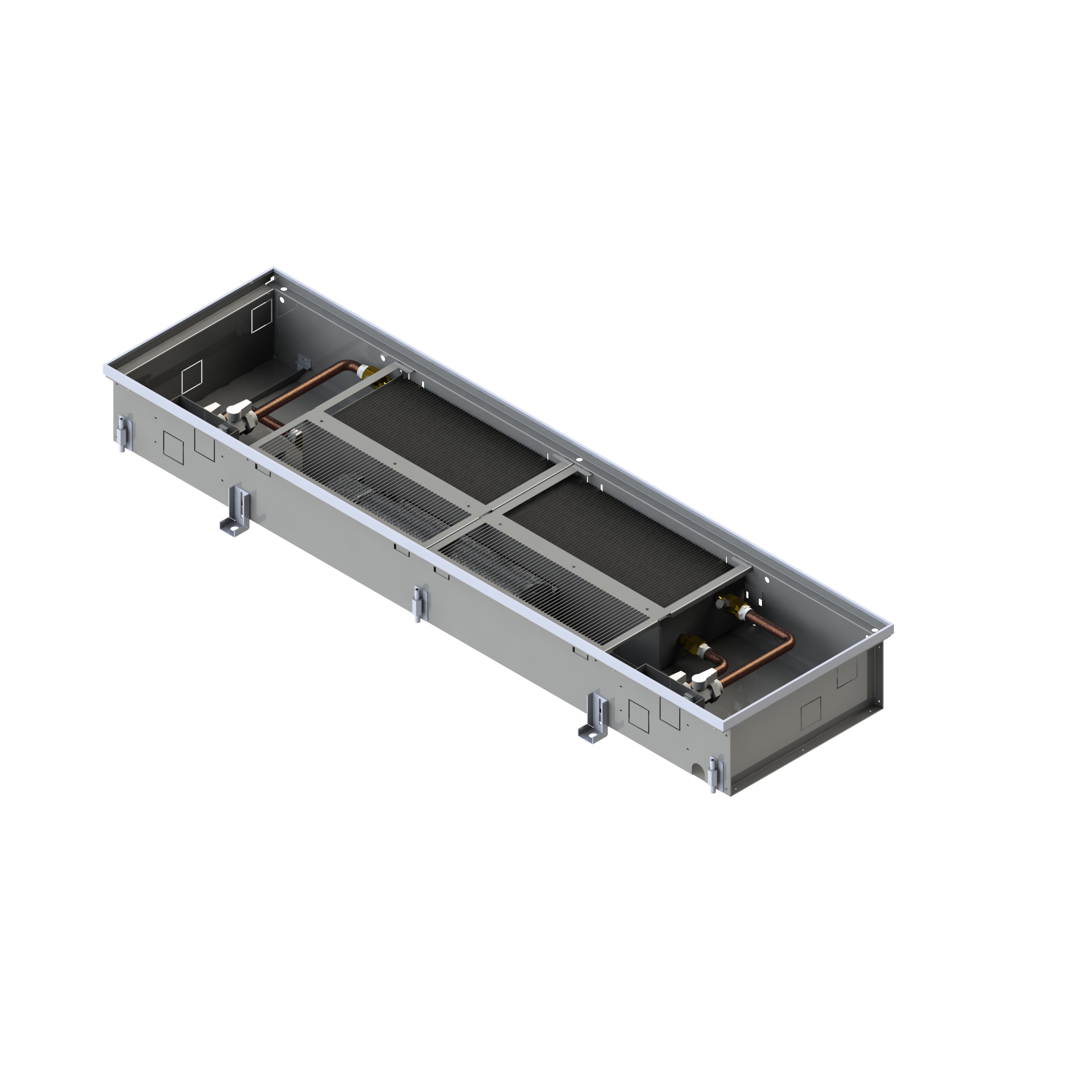

Engineered for both 2-pipe and 4-pipe systems, the Line Fan Clima delivers powerful heating and cooling in one elegant, floor-integrated unit. It’s ideal for hotels, offices, museums, hospitals, airports, schools, and any space with limited room for traditional HVAC equipment.

Optimized Comfort and Efficiency

The Heatmann Line Fan Clima ensures maximum comfort with low noise levels, clean filtered air, and efficient temperature control.
Its modern EC cross-flow fans deliver quiet, steady airflow with low energy consumption, guaranteeing high performance with minimal environmental impact.

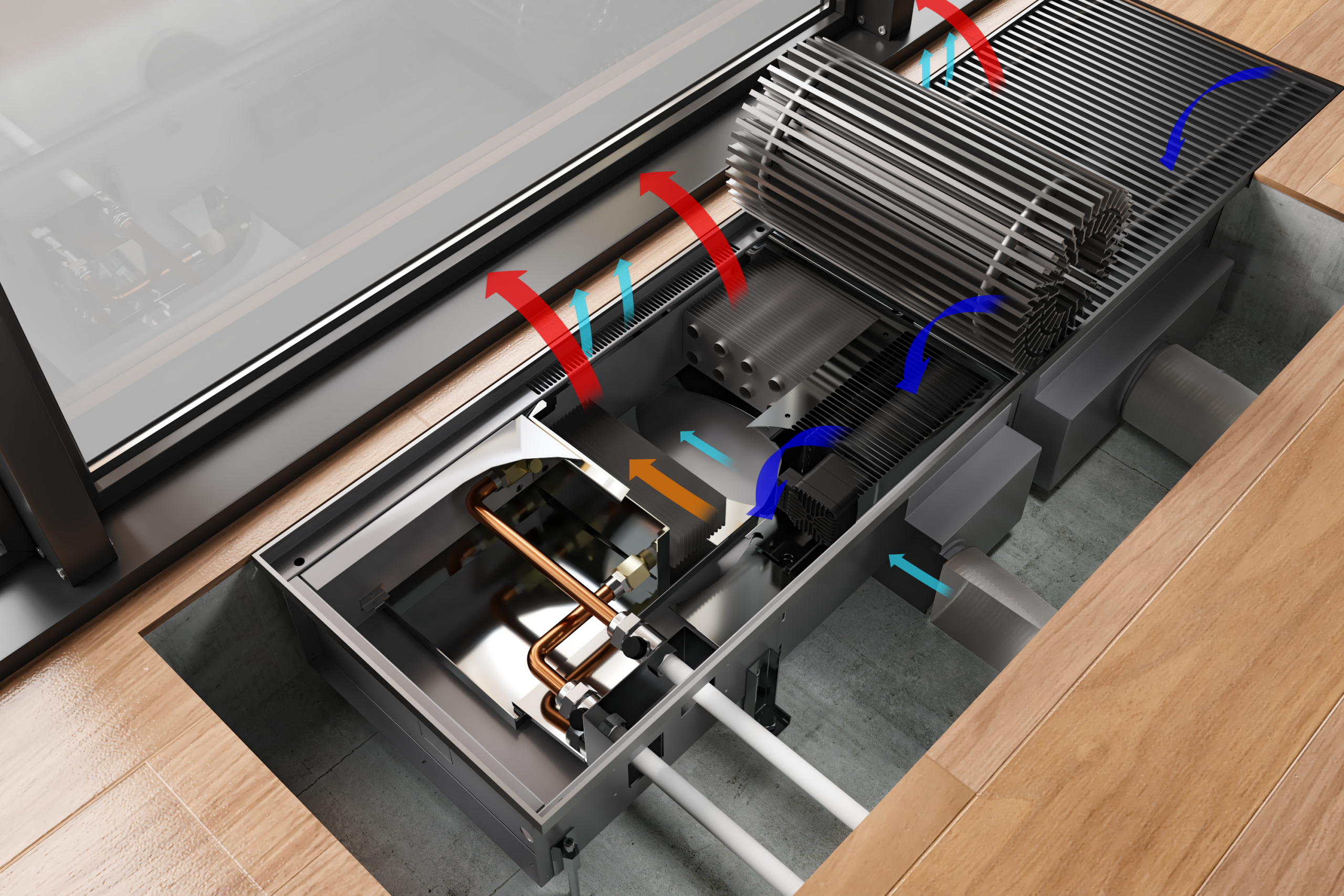

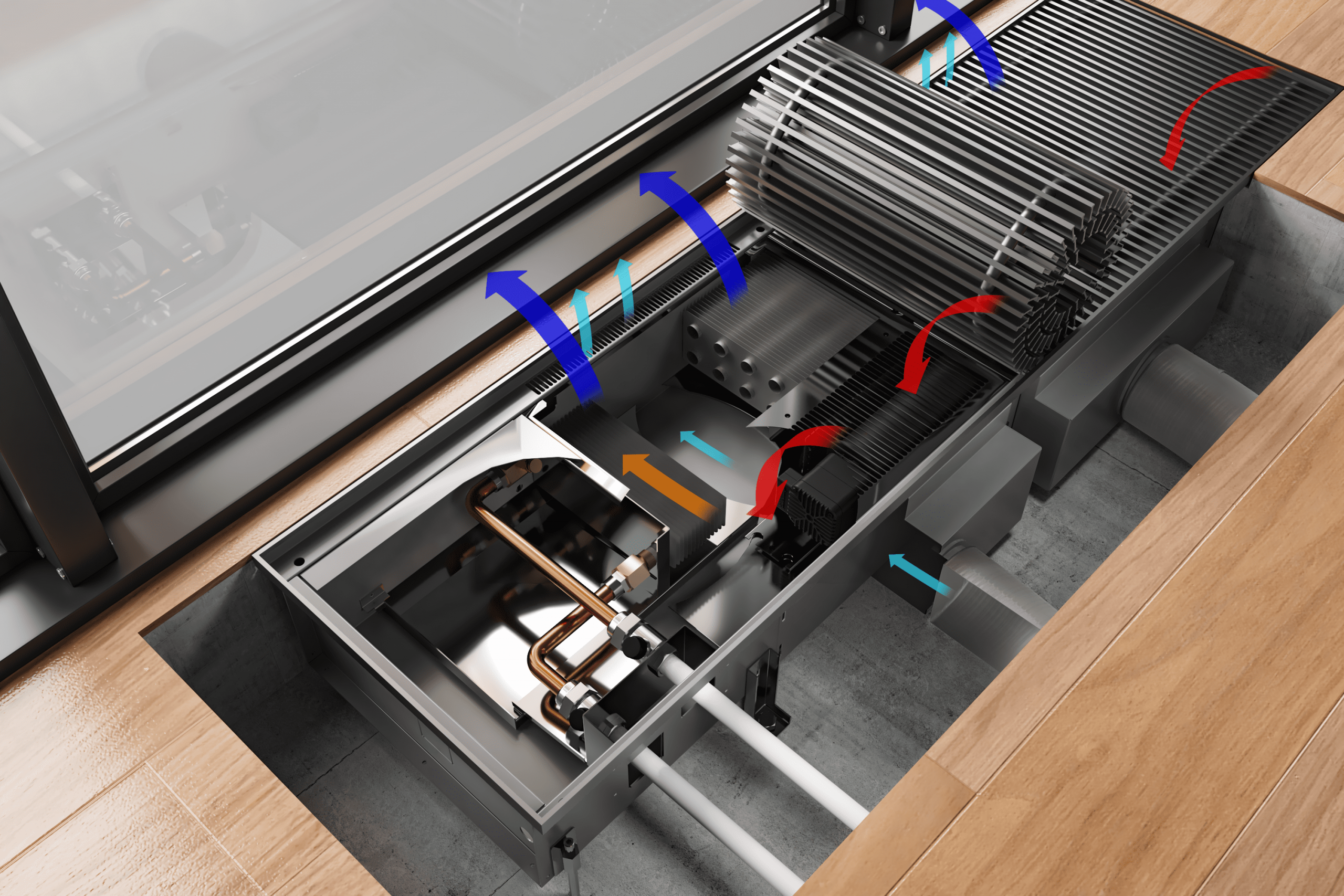

The system provides both heating and cooling capabilities, maintaining optimal indoor climates throughout the year — even in areas with large glass facades or challenging thermal conditions.

The air filtration system ensures a cleaner, healthier indoor environment by capturing dust and impurities, making it particularly suitable for public and commercial buildings that prioritize air quality and hygiene.

Advanced Energy-Saving Technology

At the core of the Line Fan Clima is an energy-optimized EC fan system that offers variable-speed control and ultra-quiet operation.

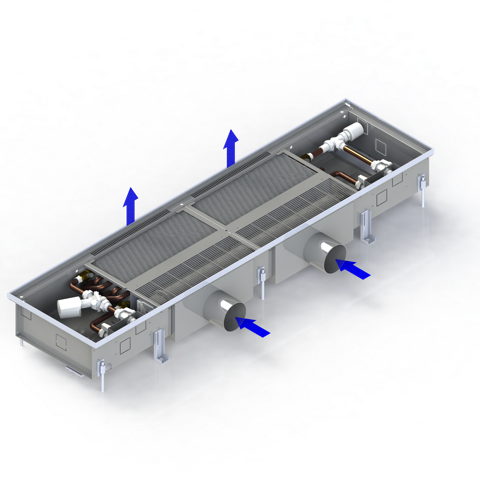

The fans are cascaded in a continuous line, ensuring a uniform airflow across the entire convector length.
Thanks to the 0–10 V external control signal, the fan speed can be infinitely adjusted to match the precise heating or cooling demand in each zone.

This intelligent design allows the unit to operate with minimal power usage while maintaining consistent comfort levels.
The acoustic decoupling mounting system not only minimizes operational noise but also allows for quick and easy removal of the convector for cleaning and maintenance — a key benefit for facilities that require frequent servicing.

Compact Yet Powerful

Despite its slim dimensions, the Heatmann Line Fan Clima LFC offers impressive performance.
Its compact width and height make it ideal for floor installation in confined architectural spaces, without compromising power or efficiency.
A wide selection of model lengths and widths enables flexible configuration for buildings with complex layouts, ensuring tailored solutions for every project.

Both the internal configuration and air distribution of the Line Fan Clima are carefully balanced to achieve maximum comfort, uniform temperature distribution, and quiet operation in every room.

Optional Supply Air Module

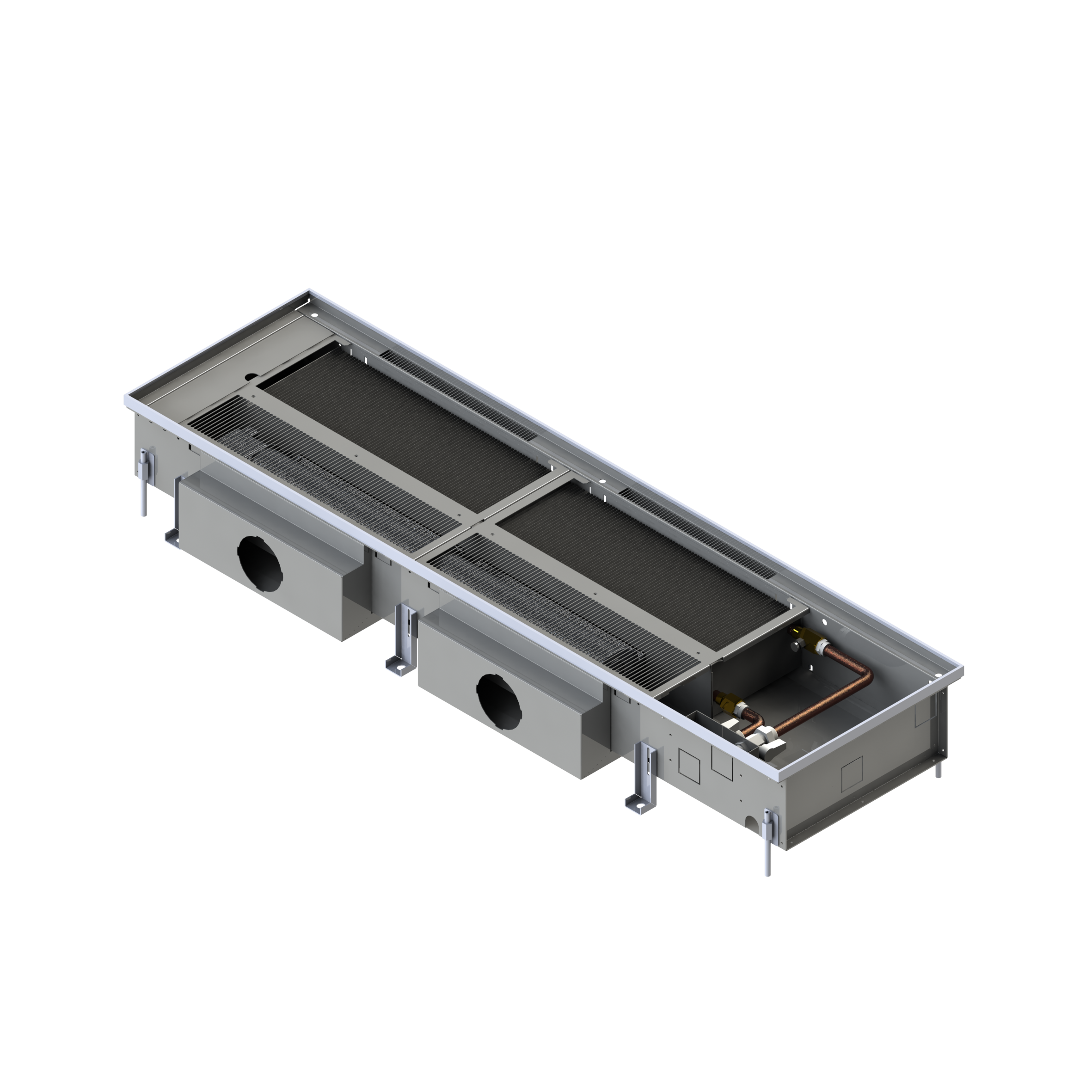

The Line Fan Clima can be equipped with a supply air module for fresh air integration.
Each module allows an adjustable outdoor air volume with a maximum flow rate of up to 60 m³/h, depending on the channel length and system design.
This makes the Line Fan Clima a complete climate control solution — capable of heating, cooling, and ventilating efficiently from a single system.

Key Benefits

• Combined heating and cooling functionality for 2-pipe or 4-pipe systems

• Energy-efficient EC cross-flow fans – quiet and low power consumption

• Infinitely variable speed control via 0–10 V signal

• Compact design ideal for limited installation spaces

• Acoustic isolation for ultra-quiet operation

• Easy maintenance with quick-release mounting system

• Optional fresh air supply module (up to 60 m³/h per module)

Heatmann Line Fan Clima – the intelligent choice for efficient, quiet, and space-saving climate control in modern architecture.
