Heatmann Line Air – Trench Convectors with Fresh Air Supply

Heatmann Line Air – Trench Convectors with Fresh Air Supply

The Heatmann Line Air series combines elegant floor-integrated heating with fresh air ventilation.
These advanced trench convectors deliver comfortable indoor heating and ventilation by integrating seamlessly with the building’s fresh air supply system.

Multifunctional Comfort

The Line Air series provides a multifunctional climate solution — combining heating, ventilation, fresh air supply, and, when required, cooling.
It ensures even air distribution throughout the space while maintaining optimal temperature and humidity levels.
Designed to protect interiors from cold air infiltration near large glass surfaces, these units are ideal for winter gardens, exhibition halls, airports, railway stations, and other open architectural spaces.

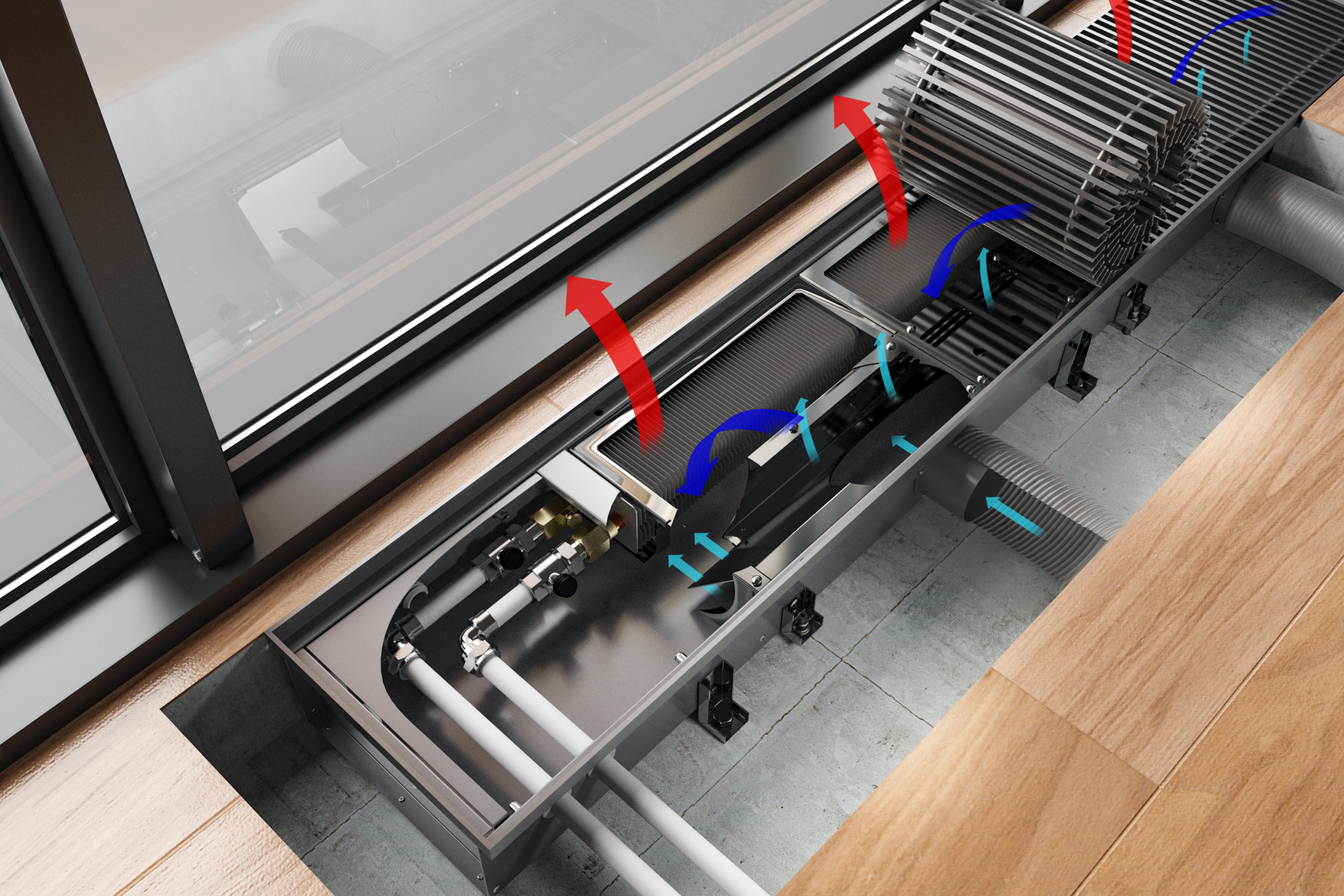

Efficient Airflow Design

When operating in cooling mode, the discharged air temperature is only 2°C–4°C lower than the ambient room temperature, with an airspeed below 0.3 m/s, preventing any unpleasant draughts.
Internal air intake and distribution systems allow precise adjustment of both the output and direction of warm and cool airflow.
This advanced design ensures consistent comfort across the room and a balanced indoor climate all year round.

Construction Features

The convector channel is made of galvanized steel coated with wear-resistant matte paint dark grey.
Reinforced steel crossbars guarantee high structural stability, while adjustable mounting legs ensure smooth height alignment during installation.
Heat exchangers are built from copper and aluminium for exceptional thermal efficiency, while perforated filter panelsensure uniform air distribution.
An additional internal flap between the air heater and heat exchanger boosts overall heat performance.
The Ø70 mm fresh air connector is located on the side, and custom fittings such as bevels or curved adapters can be added to meet specific project needs.

Premium Materials and Durability

Every Heatmann Line Air convector is crafted using premium materials — copper, aluminium, and brass — chosen for their superior heat transfer properties and long service life.
All components are protected with a graphite-grey lacquer coating that resists dust, dirt, and corrosion.
This ensures maximum performance, durability, and reliability under both residential and industrial conditions.

Key Benefits

• Combined heating and ventilation in one system

• Optional cooling function for year-round comfort

• Gentle airflow below 0.3 m/s – no draughts, no discomfort

• High-quality copper–aluminium heat exchanger for efficient performance

• Durable, corrosion-resistant matte finish

• Suitable for buildings with large glass areas or demanding ventilation needs

Heatmann Line Air – intelligent climate control that delivers warmth, freshness, and balance in one elegant solution.
