Heatmann Cube Wall – Wall Mounted Convector for Low-Temperature Heating

Heatmann Cube Wall – Wall-Mounted Convector for Low-Temperature Heating

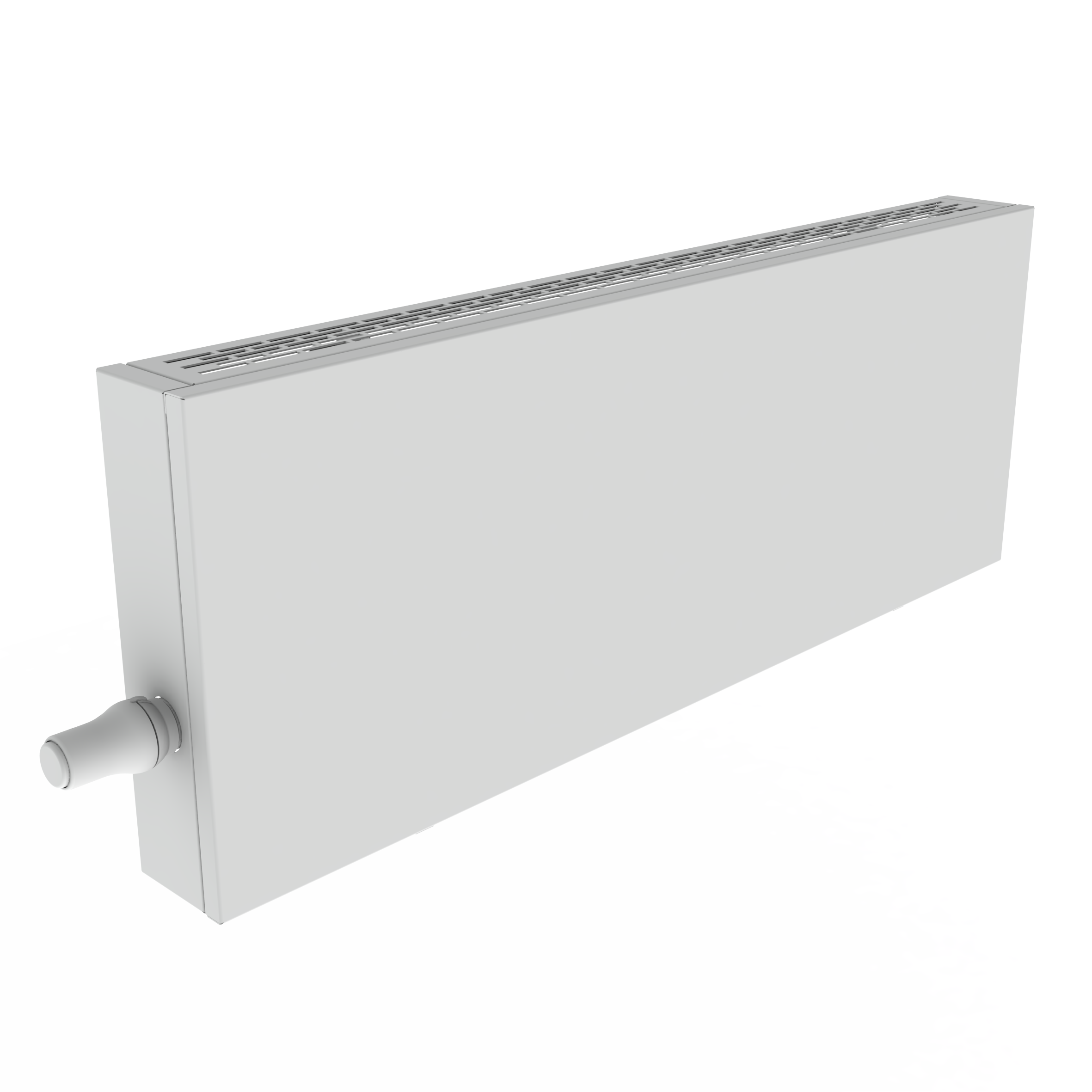

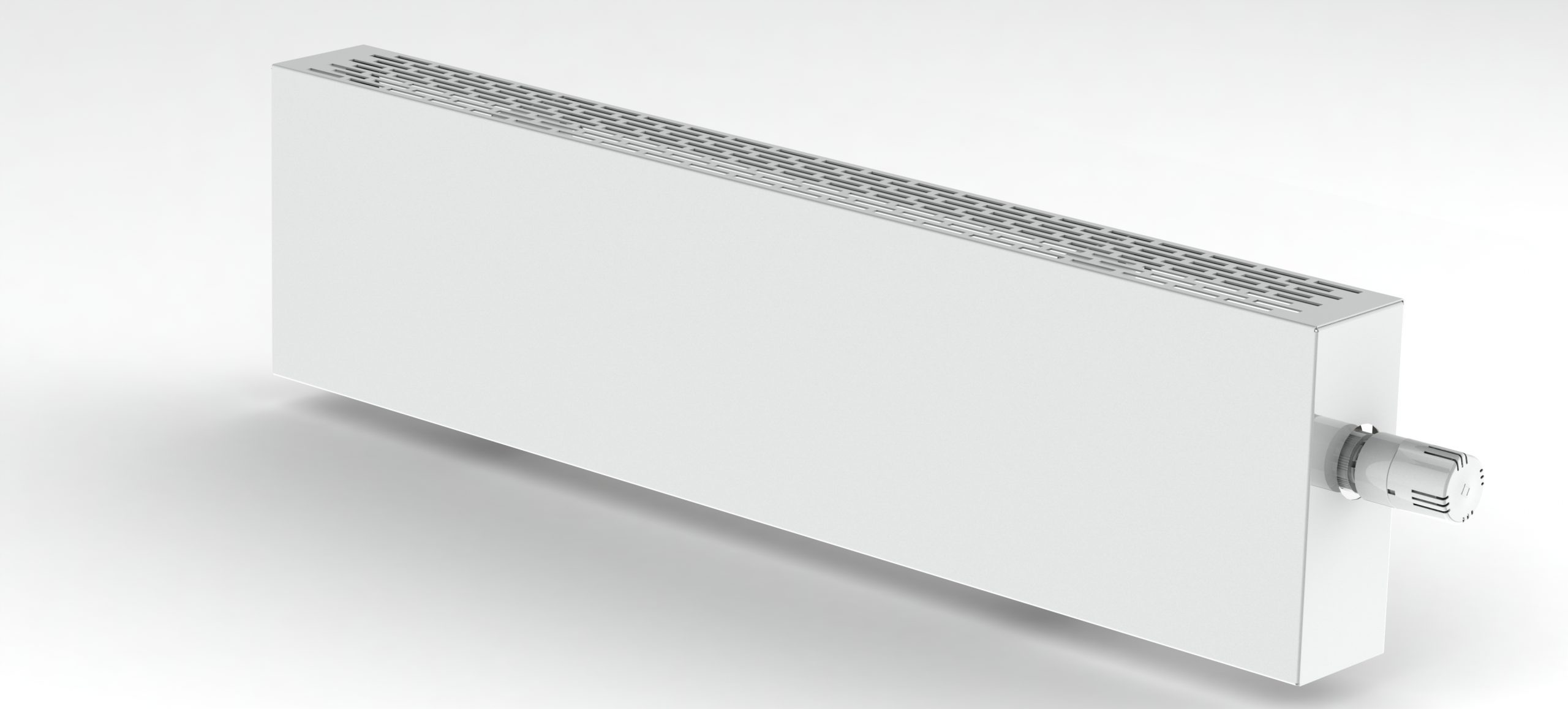

The Heatmann Cube Wall is a premium wall-mounted convector heater designed for modern low-temperature heating systems.
Combining minimalist aesthetics with advanced thermal performance, it provides quiet, efficient, and responsive heating — perfectly suited for homes, offices, hotels, and commercial interiors where design and comfort go hand in hand.

Elegant Design and Compact Construction

The Cube Wall series is characterized by its smooth, seamless front panel, which adds a refined architectural touch to any interior.
Its slim design allows discreet installation on the wall, freeing up valuable floor space while maintaining optimal heat output.
Whether installed in a contemporary home or a professional workspace, the Cube Wall integrates effortlessly into any décor.

Each convector can be customized with different exhaust grille designs — round, rectangular, or linear — and finished in a wide range of colour options to suit your project.
Standard finishes include Traffic White (RAL 9016) and Sandblast Grey (001) with a fine-textured metallic lacquer, while additional colours are available upon request.
All surfaces are protected with an environmentally friendly, scratch-resistant, and UV-resistant powder coating, ensuring long-lasting appearance and durability.

Efficient Natural Convection Heating

The Heatmann Cube Wall operates on the principle of natural convection, offering an ideal balance of efficiency, comfort, and simplicity.
Warm air rises naturally through the heat exchanger, distributing heat evenly throughout the room without the need for a fan.
This method guarantees silent operation, low surface temperature, and fast response to temperature changes — making it particularly suitable for spaces that require quick and precise thermal control.

Its low-temperature operation makes the Cube Wall an excellent companion for modern heating systems, including heat pumps and renewable energy sources, providing efficient warmth while minimizing energy use.

High-Quality Materials and Technical Reliability

Every Heatmann Cube Wall convector is built to meet the highest quality standards.

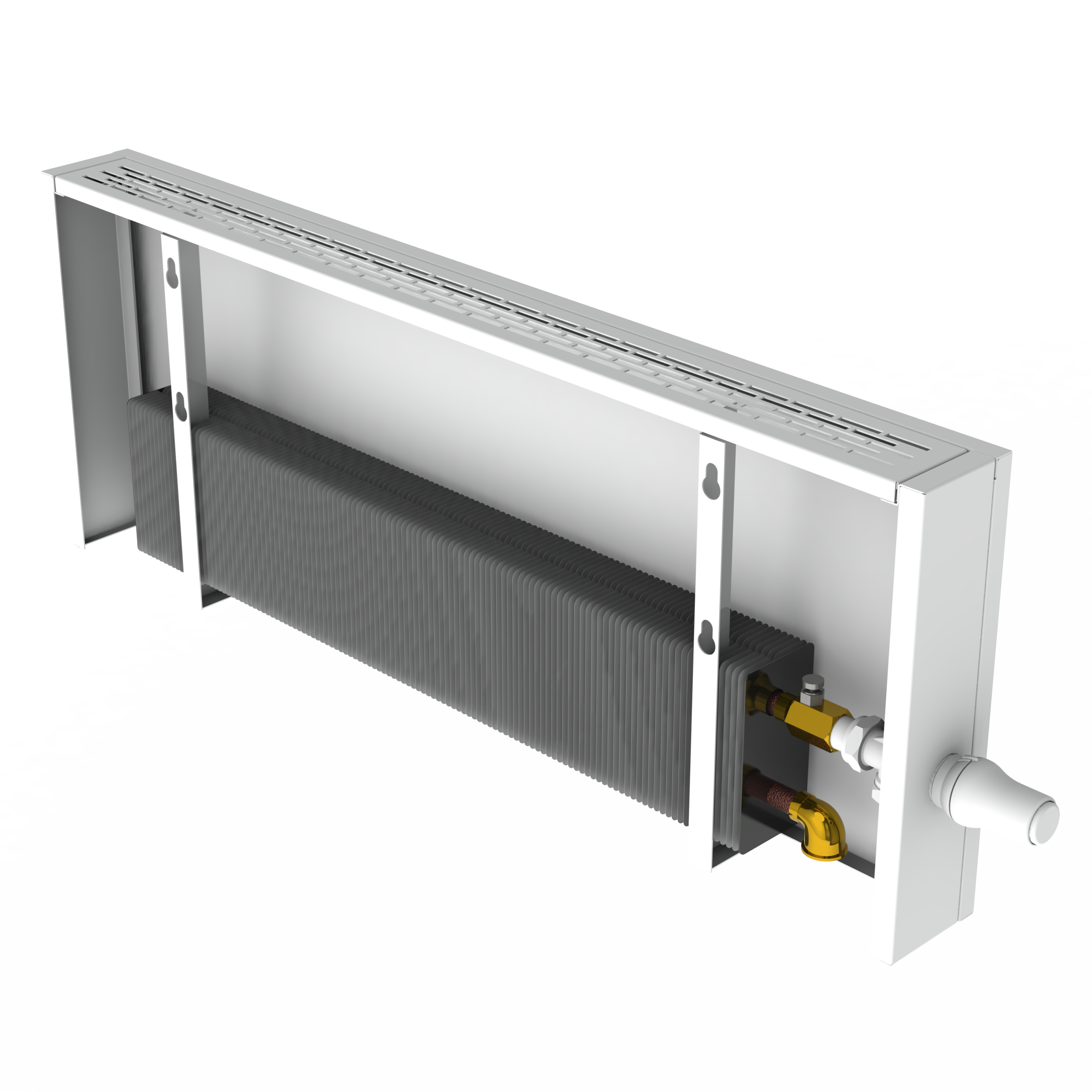

The heat exchanger is made from high-conductivity materials such as copper and aluminium, ensuring maximum heat transfer efficiency and durability.
The outer casing is constructed from surface-treated steel sheet metal with an epoxy-polyester powder coating, providing corrosion protection and a premium finish.

Technical specifications ensure reliable performance:

• Maximum operating temperature: 110°C

• Maximum operating pressure: 1.6 MPa (16 bar)

• Protection class: IP20

• Operating conditions: +2°C to +40°C; humidity 20–70% Rh

Easy Installation and Delivery

The Cube Wall is designed for quick and easy installation by one person.
Each unit is delivered in thermo-protective packaging, which also serves as on-site protection after mounting.
The standard delivery includes:

• Heat exchanger with wall brackets and fixing kit

• Extended air vent (1/8”) and drain plug (1/2”)

• Steel cover with powder coating

• Grille (round, rectangular, or linear as per order specification) securely attached to the cover

Key Benefits

• Elegant wall-mounted design with smooth front panel

• Natural convection heating – silent, efficient, and low-maintenance

• Ideal for low-temperature systems and heat pumps

• Customizable colours and grille styles

• Durable powder-coated finish – scratch and UV resistant

• Compact and easy to install – designed for single-person mounting

• High-quality copper–aluminium heat exchanger for efficient performance

Heatmann Cube Wall – where architectural design meets silent, energy-efficient comfort.
